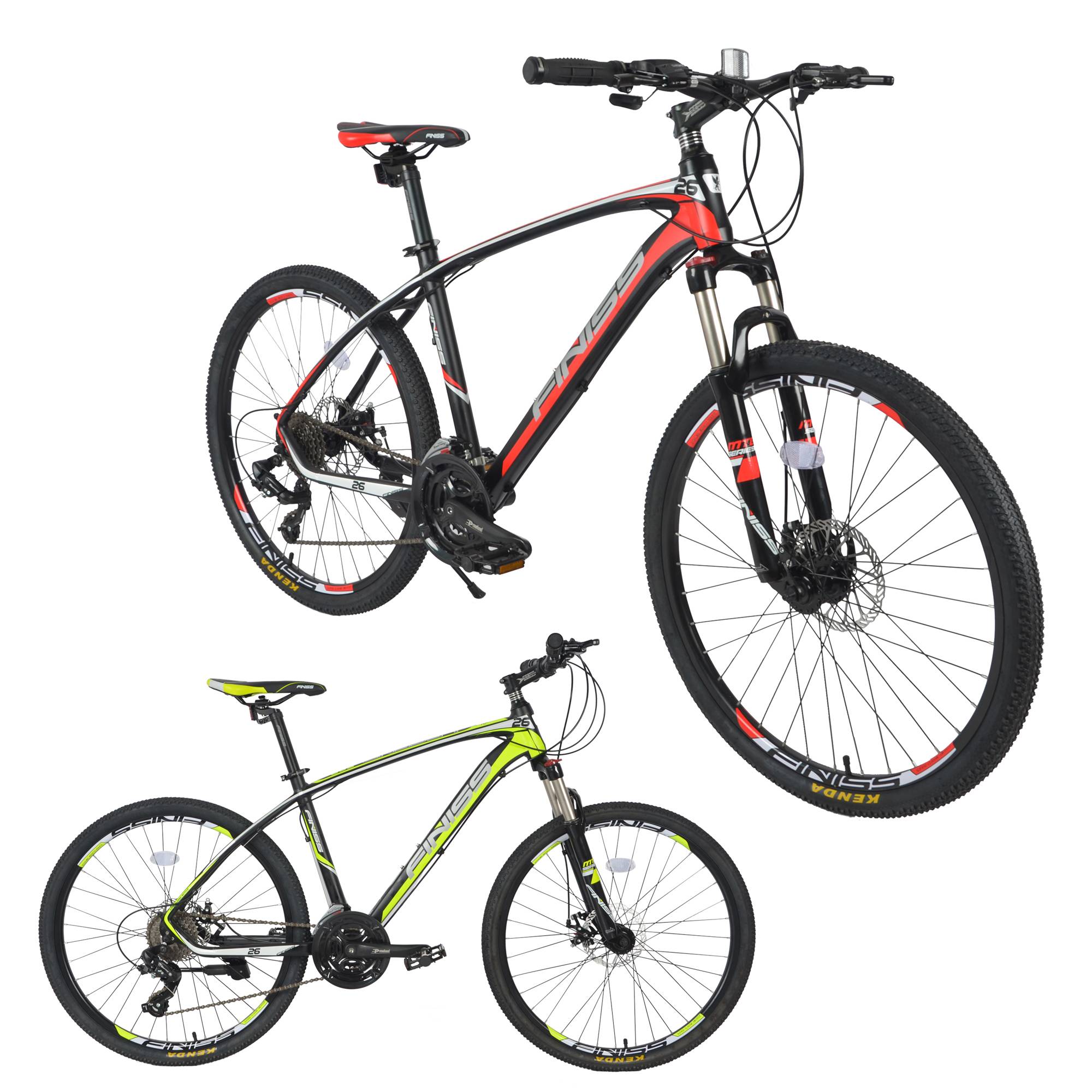

26'' Aluminum Alloy Frame,Shimano Shifter System,Front And Rear Disk Brake MTB

Description:

Assembly and Tuning Required

The pedal threads differ between the left and right side. L/R marks are embossed on the spindle of each pedal, ensure they are assembled on the correct side (when riding the bike the left pedal should be on your left hand side, right pedal on right hand side). The right pedal has a right-hand thread (removes counterclockwise, installs clockwise). The left pedal has a left-hand thread (removes clockwise, installs counterclockwise).

Thread both pedals into the crank arms as far as you can by hand, then fully tighten them with the wrench. If the pedals are not fully tightened, they may become loose and damage the threads, we will not be responsible for such damages.

For safety reasons, tires are not fully inflated before shipping. Before your first ride, it's suggested that you inflate the tires properly.

Specifications:

GUARANTEE:Frame 6 months  ，Spare parts 3 months（Tire、Pedals、Brake shoe、Brake cable、 And other consumables are not covered by the warranty）

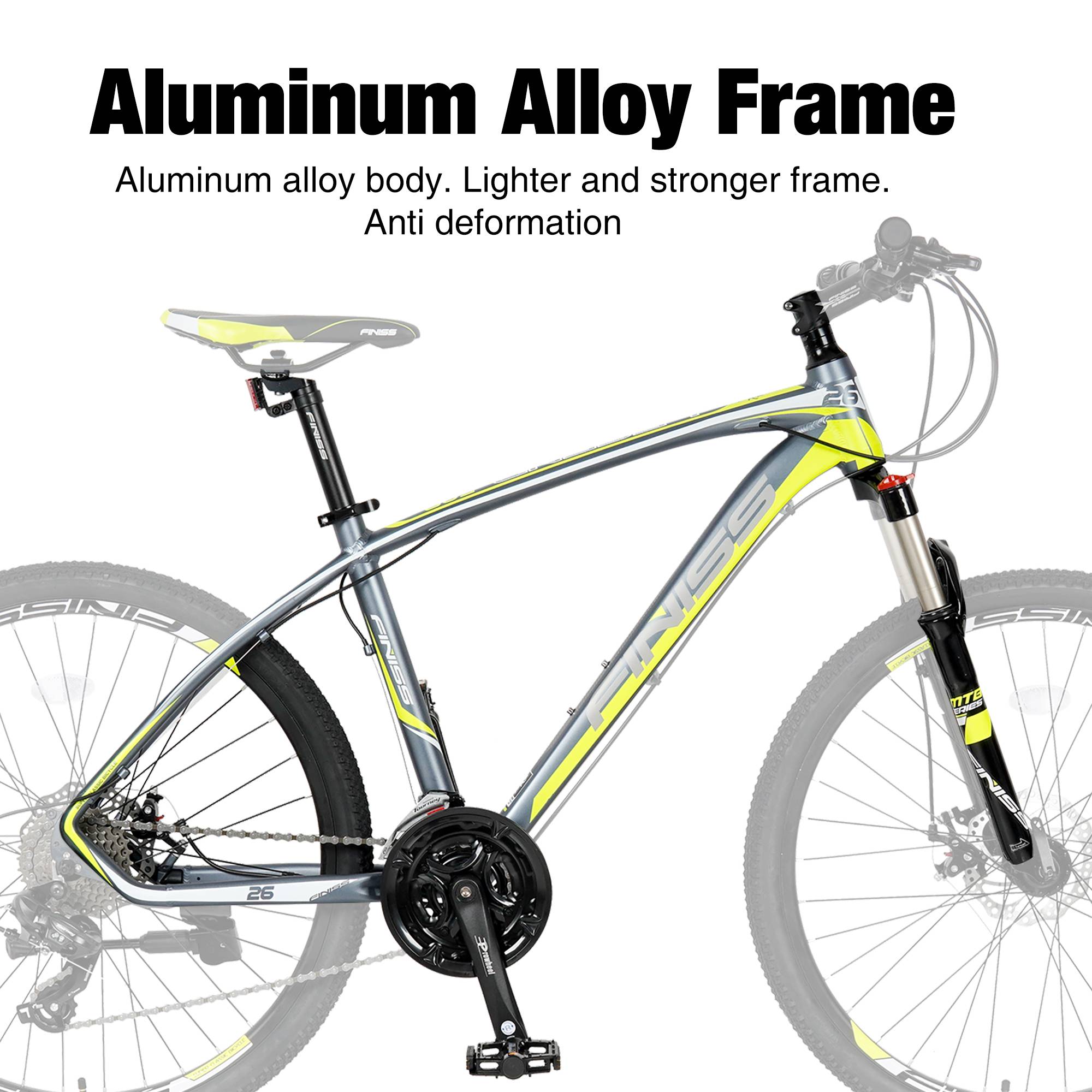

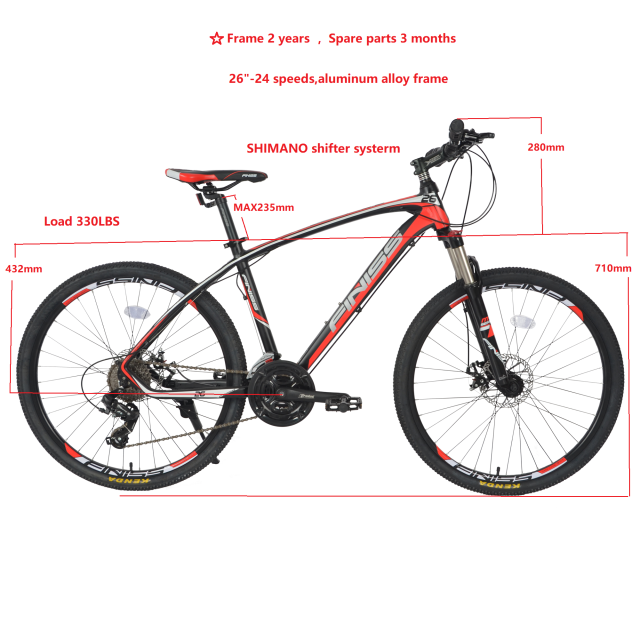

Frame:26"-24 speeds , advanced aviation grade aluminum alloy frame，Advanced integrated customized rear hook claw ，imitated carbon fiber   brake inner wiring，S/T:432mm

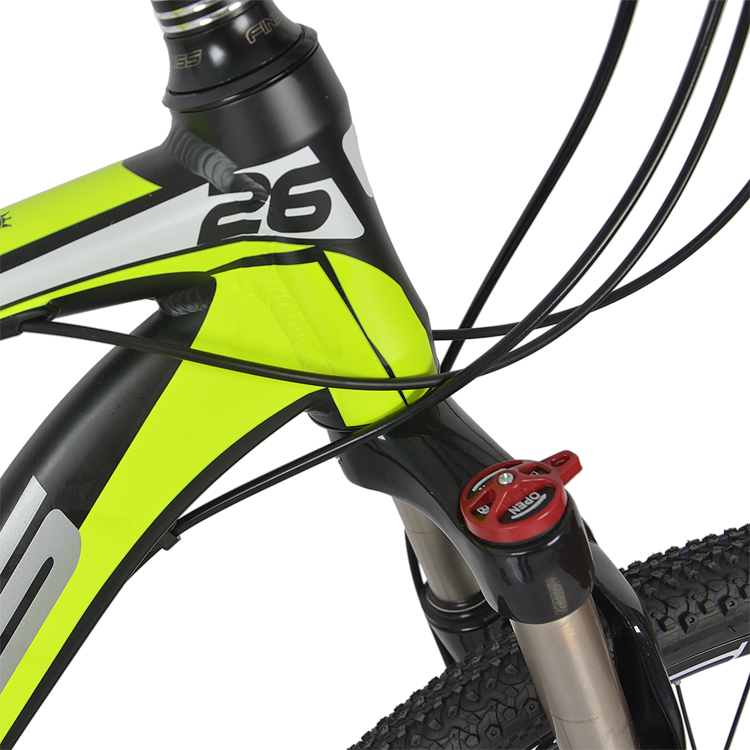

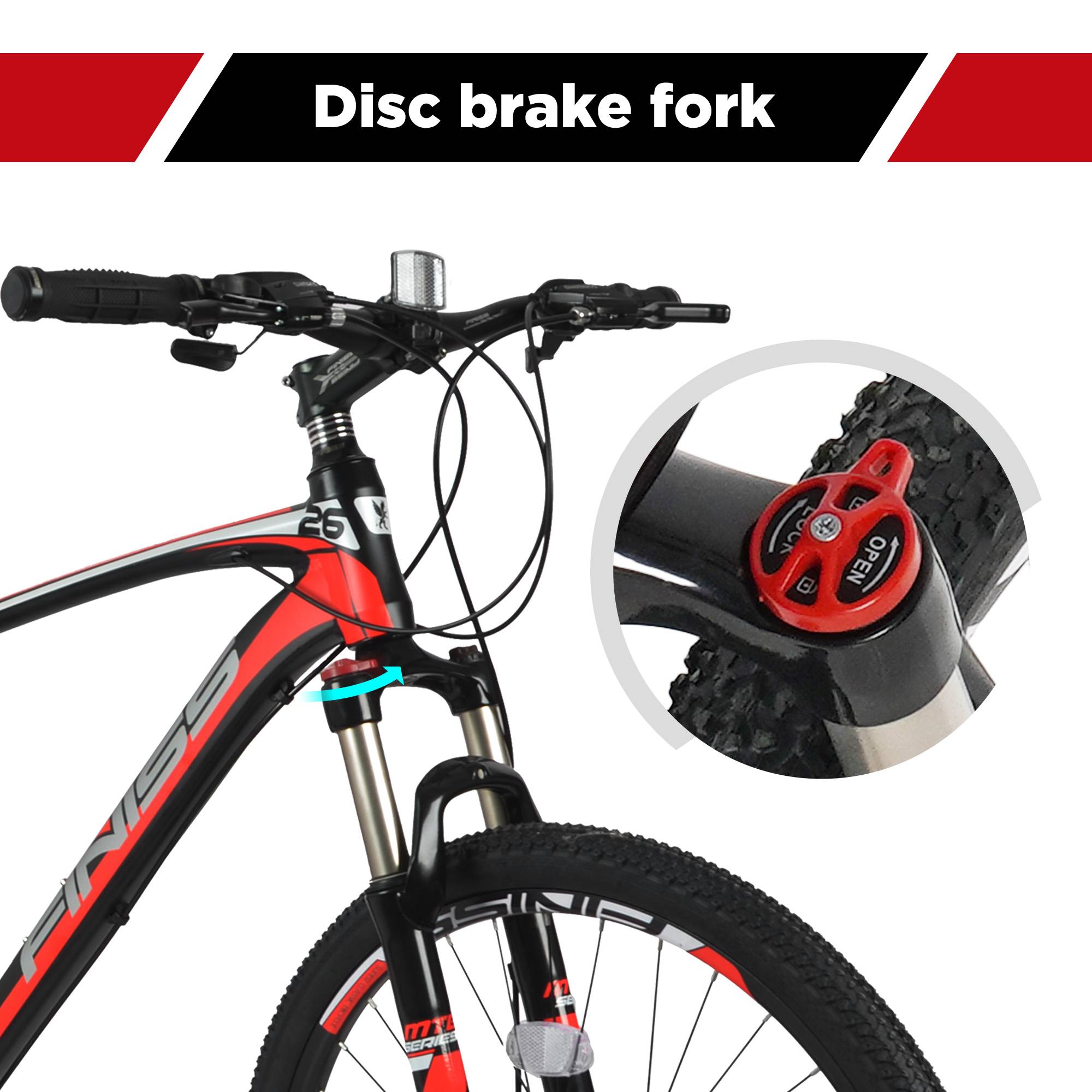

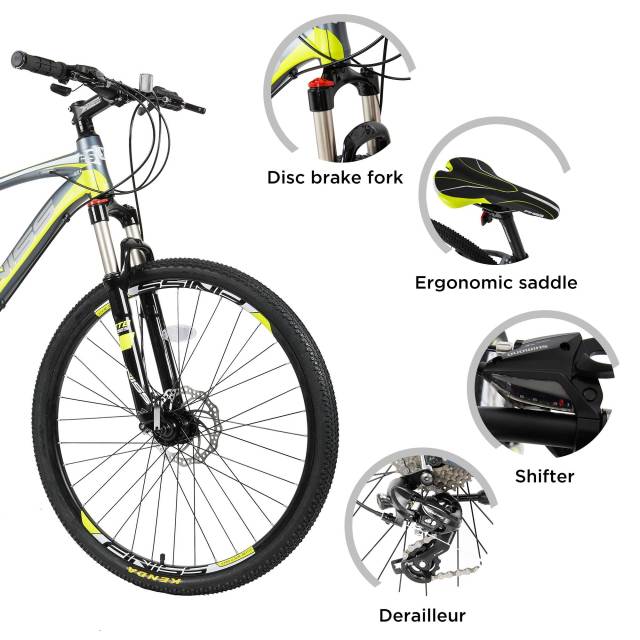

Fork:26" Aluminum crown , mechanical lock , disc brake  fork， travel tube titanium color ，With lock function ，fork leg ：∮35   , stem tube：28.6mm*∮25.4mm*199L

Painting:Taiwan advanced electrostatic spraying process

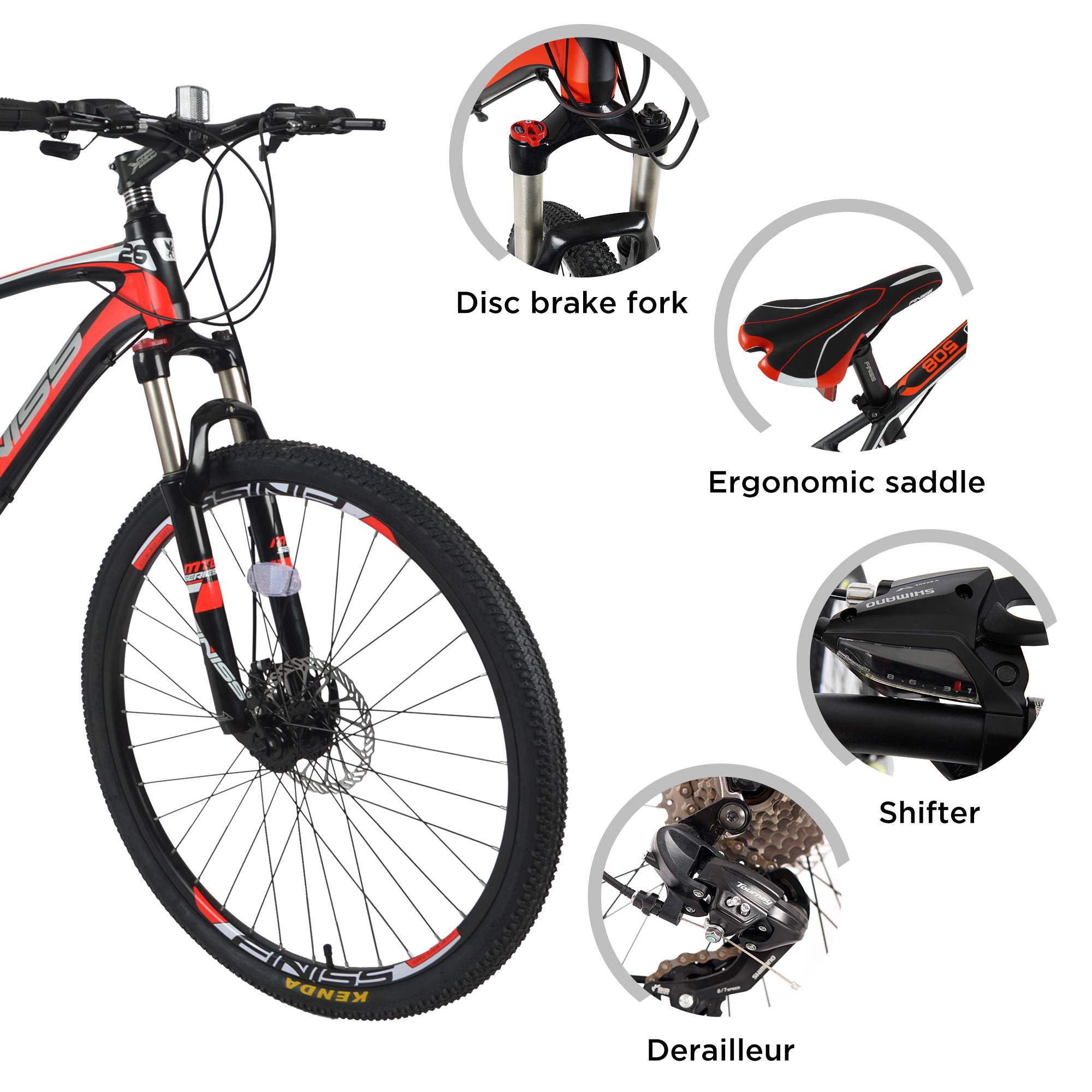

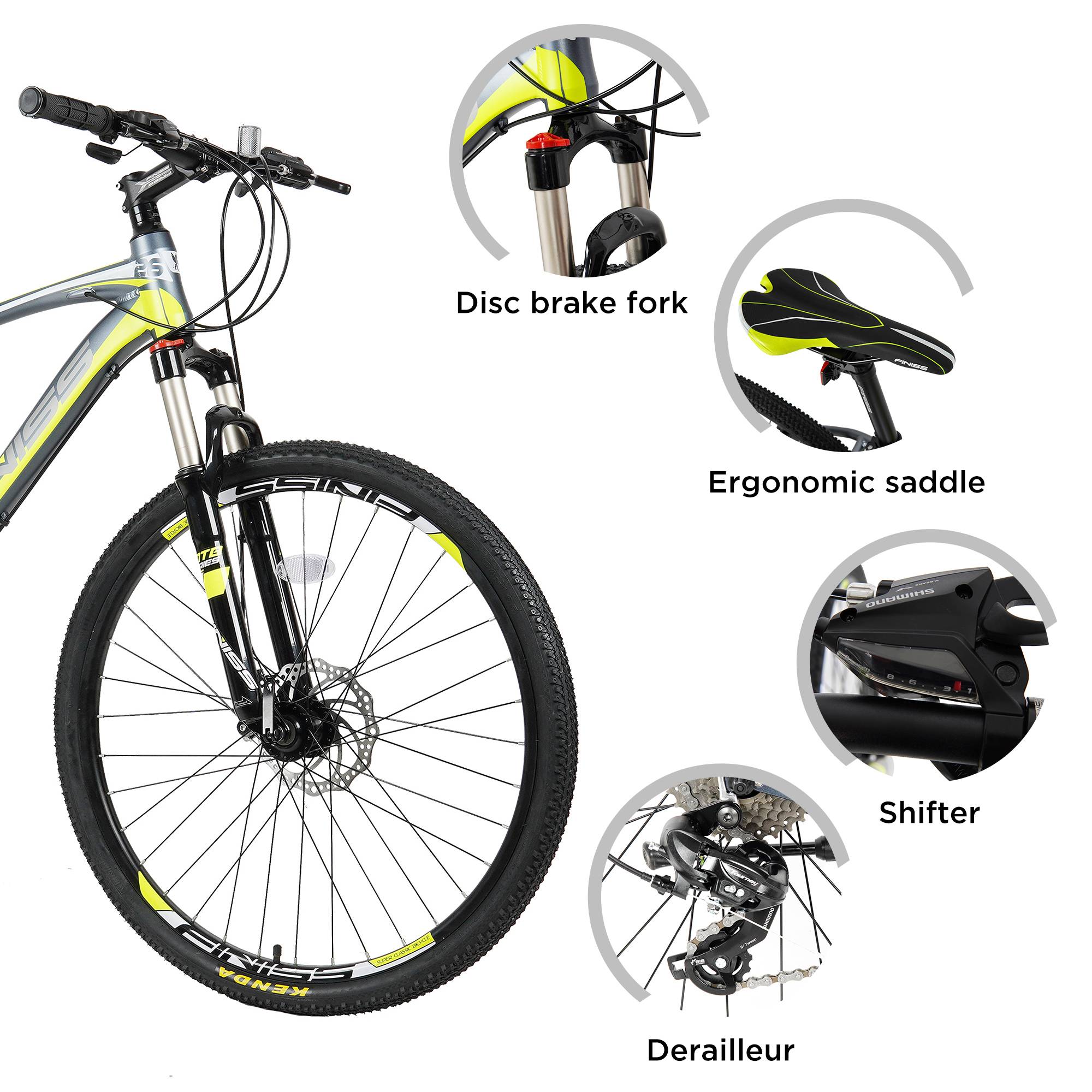

Saddle:Advanced ergonomic saddle

Seat post:Aluminum alloy   integrated   ultralight   seatpost  with clamp

Handlebar:Aluminum alloy   integrated   ultralight  swallow type handle bar

Stem:Aluminum alloy   integrated   ultralight   threadless stem

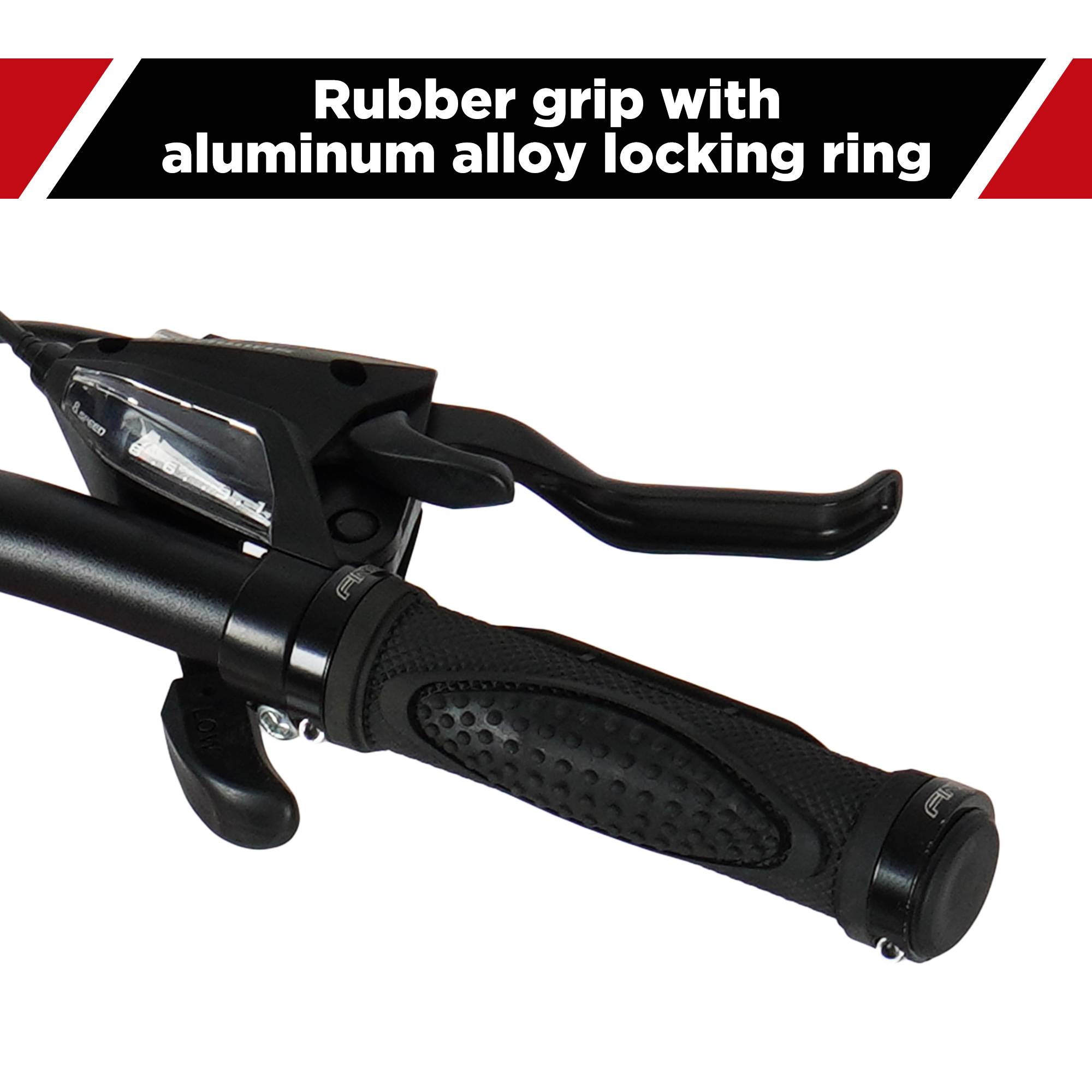

Grip:Rubber grip with aluminum alloy locking ring

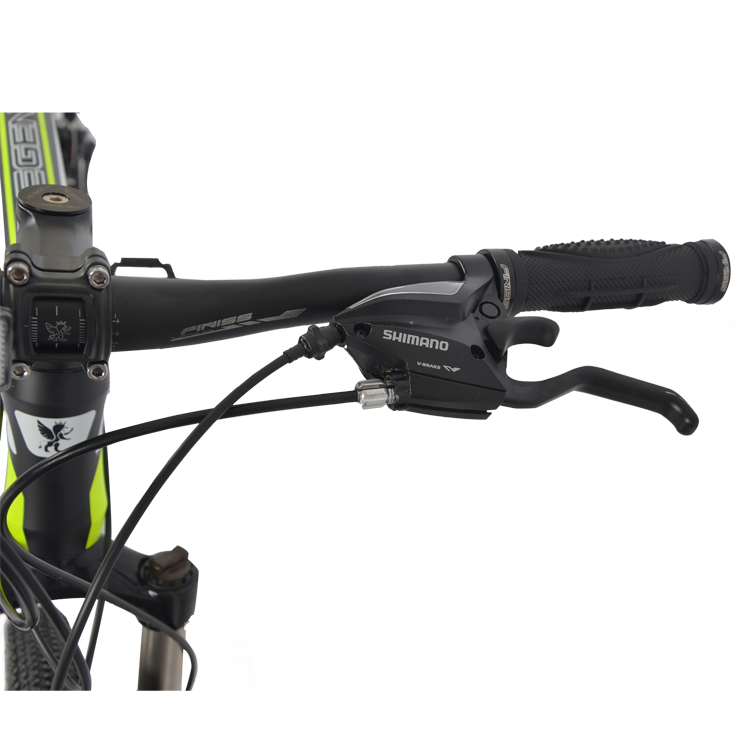

Brake lever:SHIMANO，EF500-3/8    break lever  and shifter integrated

F/R brake:Aluminum alloy  itegrated break  (balck)  , double adjustment, break shoes without  asbestos   , match for   six holes platter  ∮160MM, high temperature resistance of stainless steel .

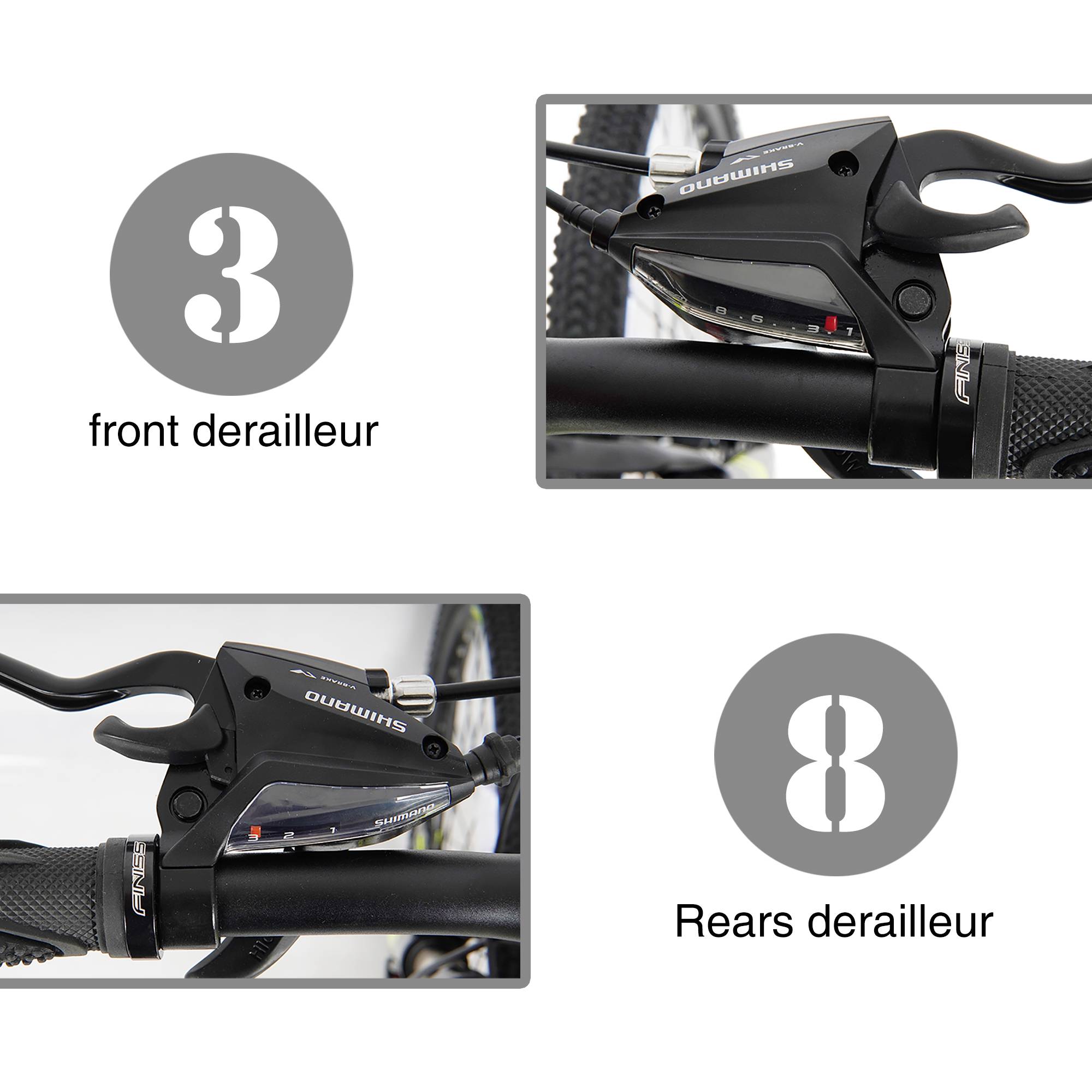

Shifter:SHIMANO，EF500-3/8  break lever  and shifter integrated  , professional for 24 speeds  MTB

F/ derailleur:SHIMANO，FD-TY500  snap ring ∮34.9 ,up & down pull in common using

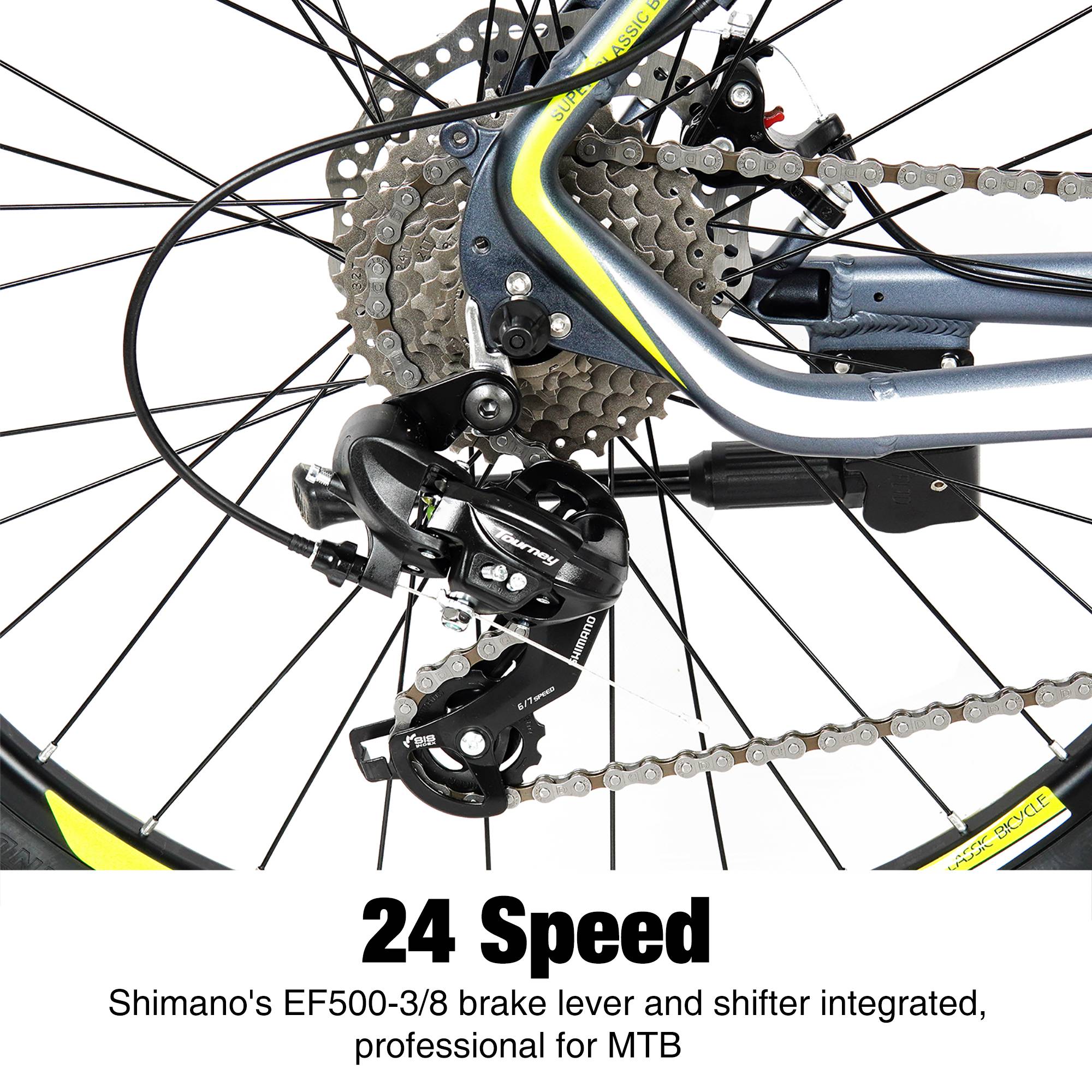

R/ derailleur:SHIMANO，RD-TY300  ,  long arm  professiona for mtb  long arm

Shifter cable pipe:SP cable pipe  ,Variable speed dedicated

Chain:Taiwan YBN   8 speed index mountain professional chain ， Advanced bridge chain

B.B. Axle:Taiwan NECO seal and bearing B.B.Axle  ，with hexagonal waterproof screw

Chainwheel & crank:Taiwan  PROWEEL Aluminum alloy CWC  ，24T(ED)*34T(ED)*42T(ED)*170L

Pedal:Taiwan NECO  Aluminum alloy pedal with ball ,  professional  for mountain bike ，Alxe : 9/16"

Tyre:Taiwan KENDA  26"*1.95 black tyre ,professional mountain bike pattern.

Tube:26"*1.95   Butyl rubber   A/V

Rim tape:High pressure  nylon  rim tape

Rim:26" Double wall reinforced aluminum alloy  rim  ，  professiona  for disk break

F/R hub :Taiwan DHQ aluminum alloy professional hub for  disc brake  ，F/R Quick release

Freewheel:KANGYUE 8 speed index mountain professional freewheel，Surface of nickel plating

Tool:Multi - function non - hole wrench 1PCS+Hexagon socket wrench L type 4#+Hexagon socket wrench L with cross 5#*1SETS

Menu:According to the customer's sample production, English manual

Carton/plastic bag:85% assembly ,  A seven-layers  American card  carton

Max Load :Load 330LBS

Package Including:

1 x MTB

Note:

1. Due to the light and screen difference, the item's color may be slightly different from the pictures.

2. Please allow 1-2 cm differences due to manual measurement.
