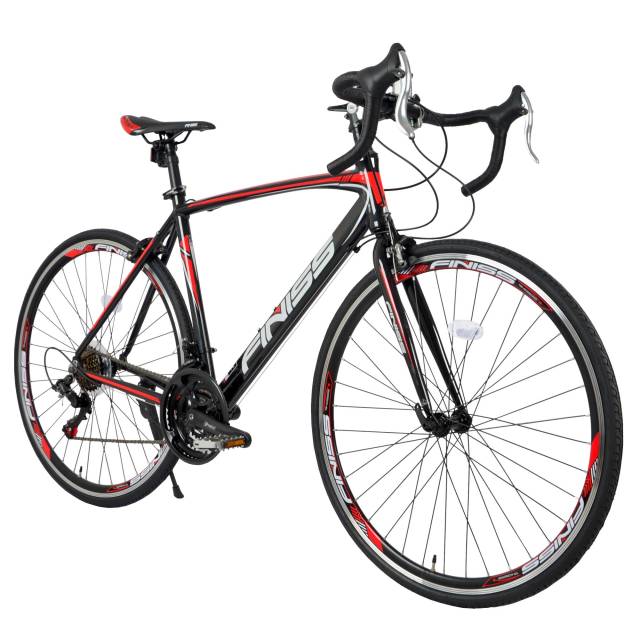

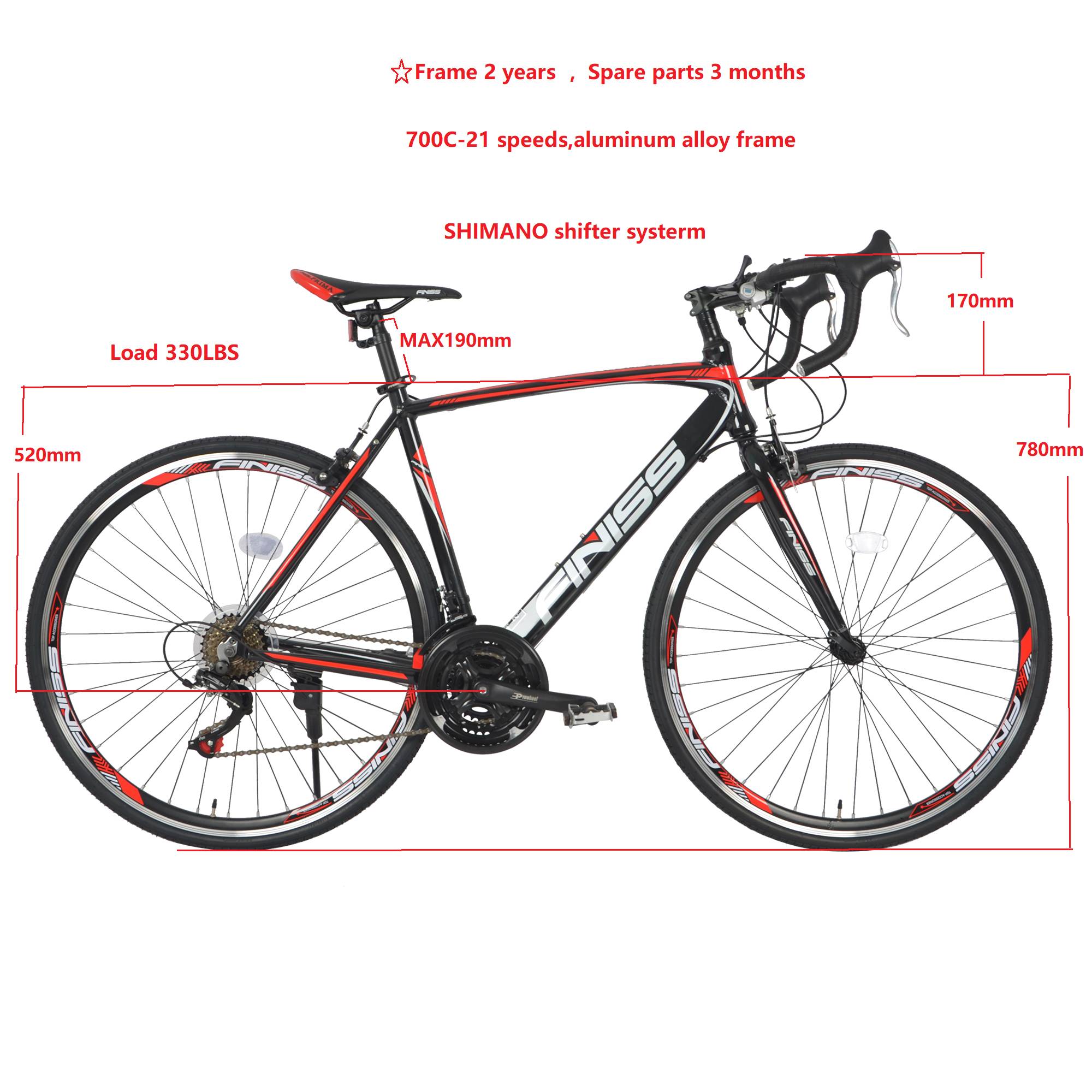

21 Speeds Aviation Grade Aluminum Alloy Frame Road Bike Shimano Shifter System

Description:

Assembly and Tuning Required

The pedal threads differ between the left and right side. L/R marks are embossed on the spindle of each pedal, ensure they are assembled on the correct side (when riding the bike the left pedal should be on your left hand side, right pedal on right hand side). The right pedal has a right-hand thread (removes counterclockwise, installs clockwise). The left pedal has a left-hand thread (removes clockwise, installs counterclockwise).

Thread both pedals into the crank arms as far as you can by hand, then fully tighten them with the wrench. If the pedals are not fully tightened, they may become loose and damage the threads, we will not be responsible for such damages.

For safety reasons, tires are not fully inflated before shipping. Before your first ride, it's suggested that you inflate the tires properly.

Specifications:

Guarantee:Frame 6 months  ，Spare parts 3 months（Tire、Pedals、Brake shoe、Brake cable、 And other consumables are not covered by the warranty）

Frame:700C-21 speeds   professional road bike frame , advanced aviation grade aluminum alloy frame，Advanced integrated customized rear hook claw ，imitated carbon fiber brake inner wiring， S/T:520mm

Fork:steel :700C " drawing down straight  leg forward fork，side pull brake  ,fork leg :∮28.6 , stem tube :∮28.6*∮25.4*219L，

Painting:Taiwan advanced electrostatic spraying process

Decal:from Italian design style

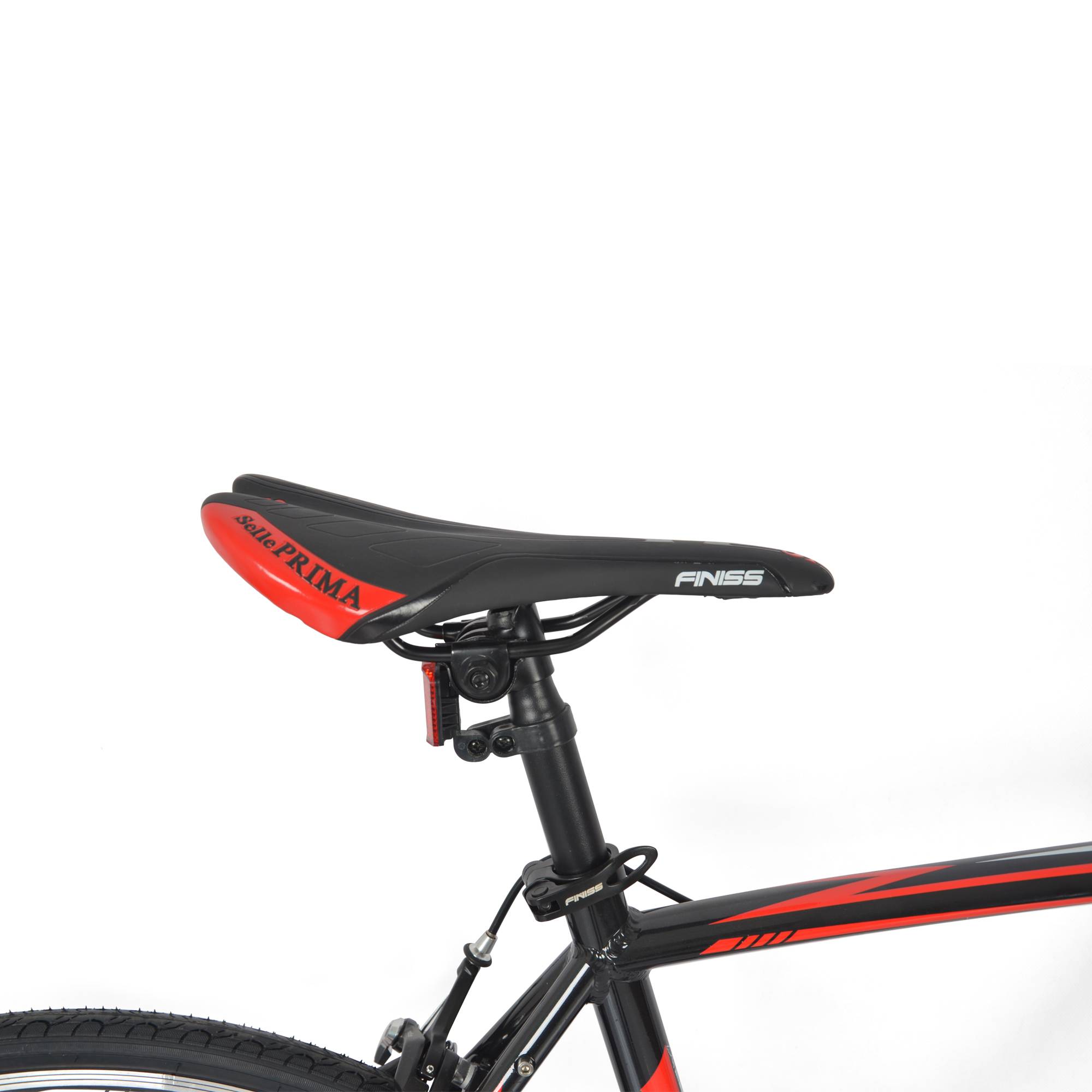

Saddle:Advanced ergonomic saddle  , professiona for  road bike

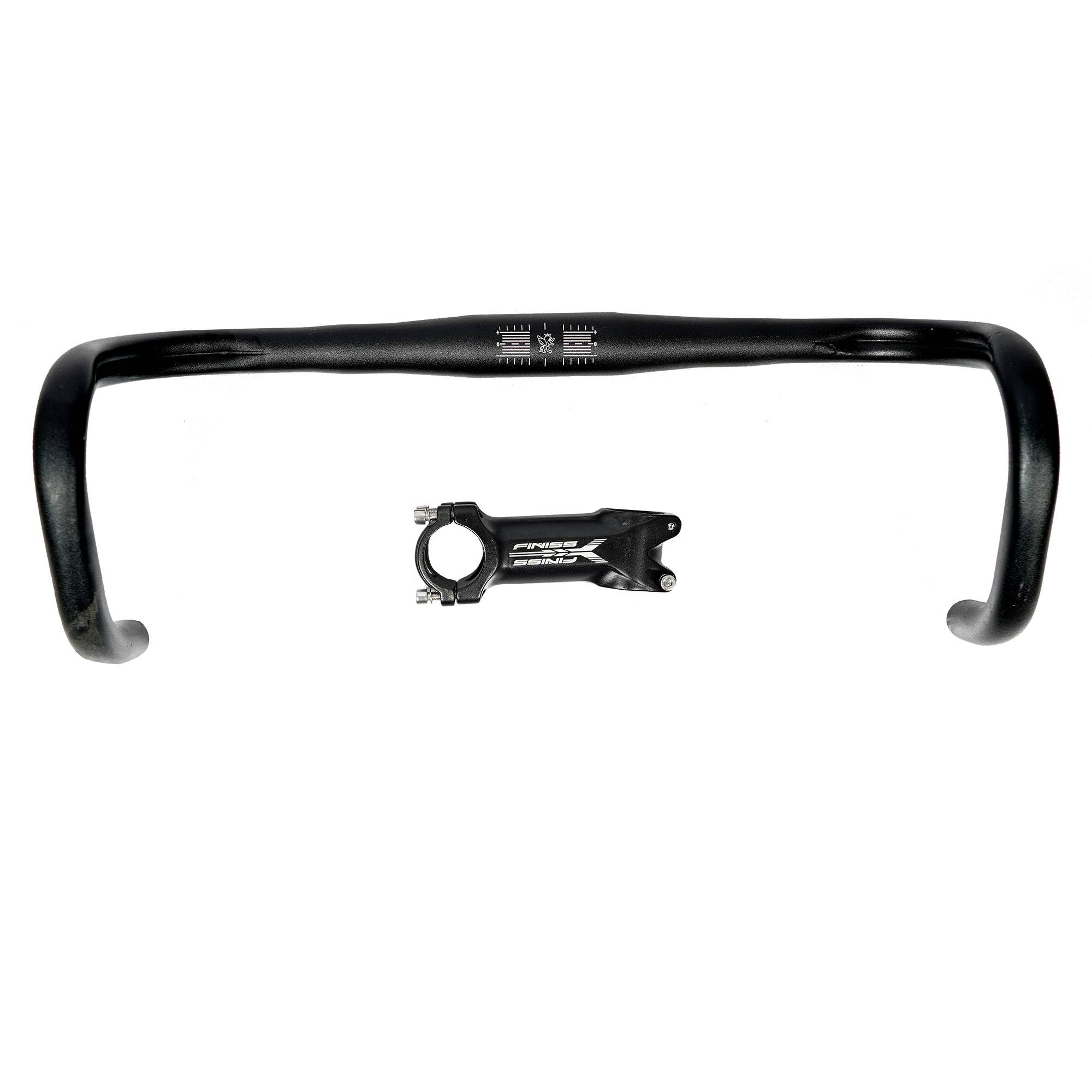

Handlebar:Aluminum alloy   integrated   ultralight   band handlebar ,professional for road bike  ,   laser carving LOGO

Stem:Aluminum alloy   integrated   ultralight  threadless stem ，professional for road bike  ,   laser carving LOGO

Grip:Advanced carbon imitation road bike  handlebar belt

Brake lever:Taiwan RADIUS road bike professional break lever

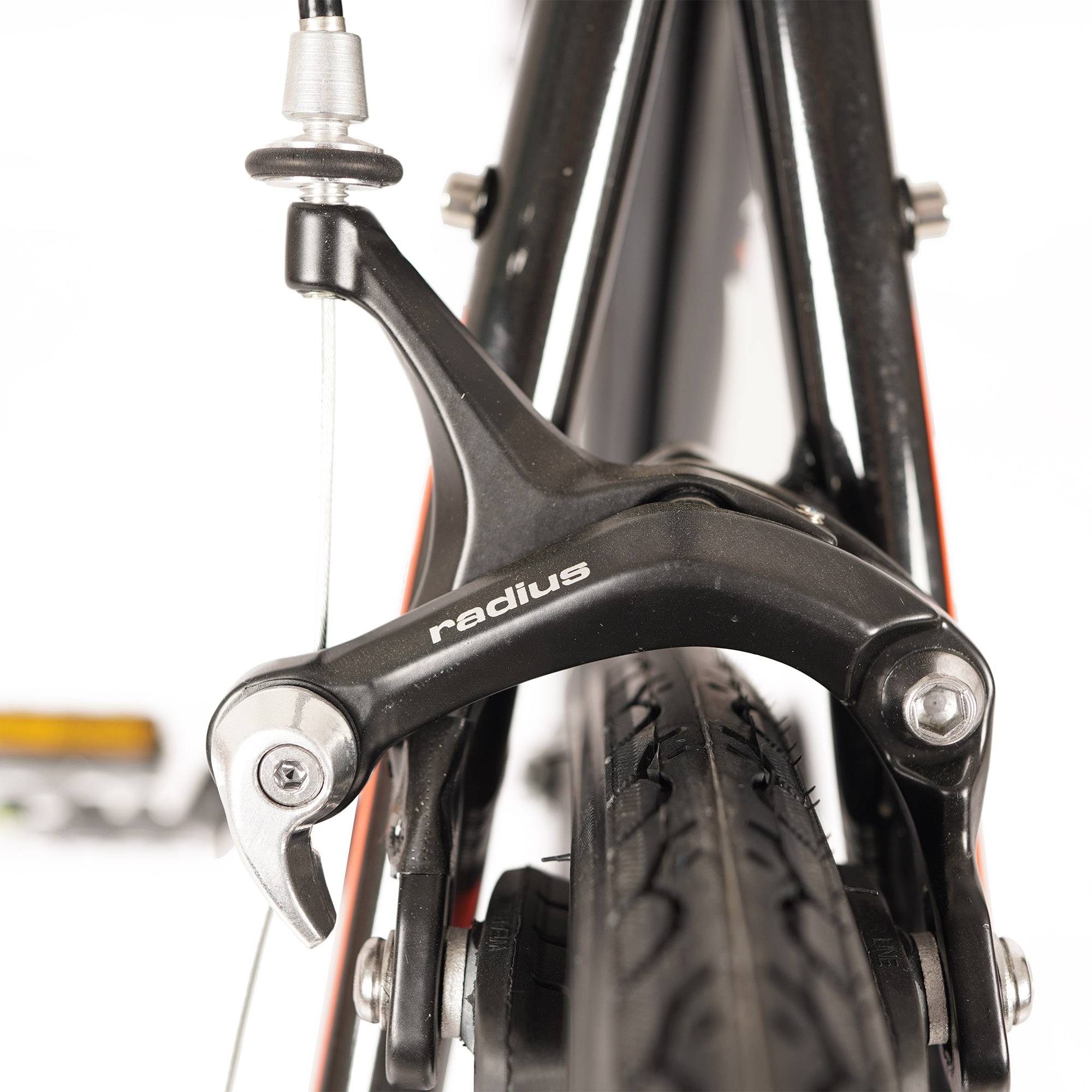

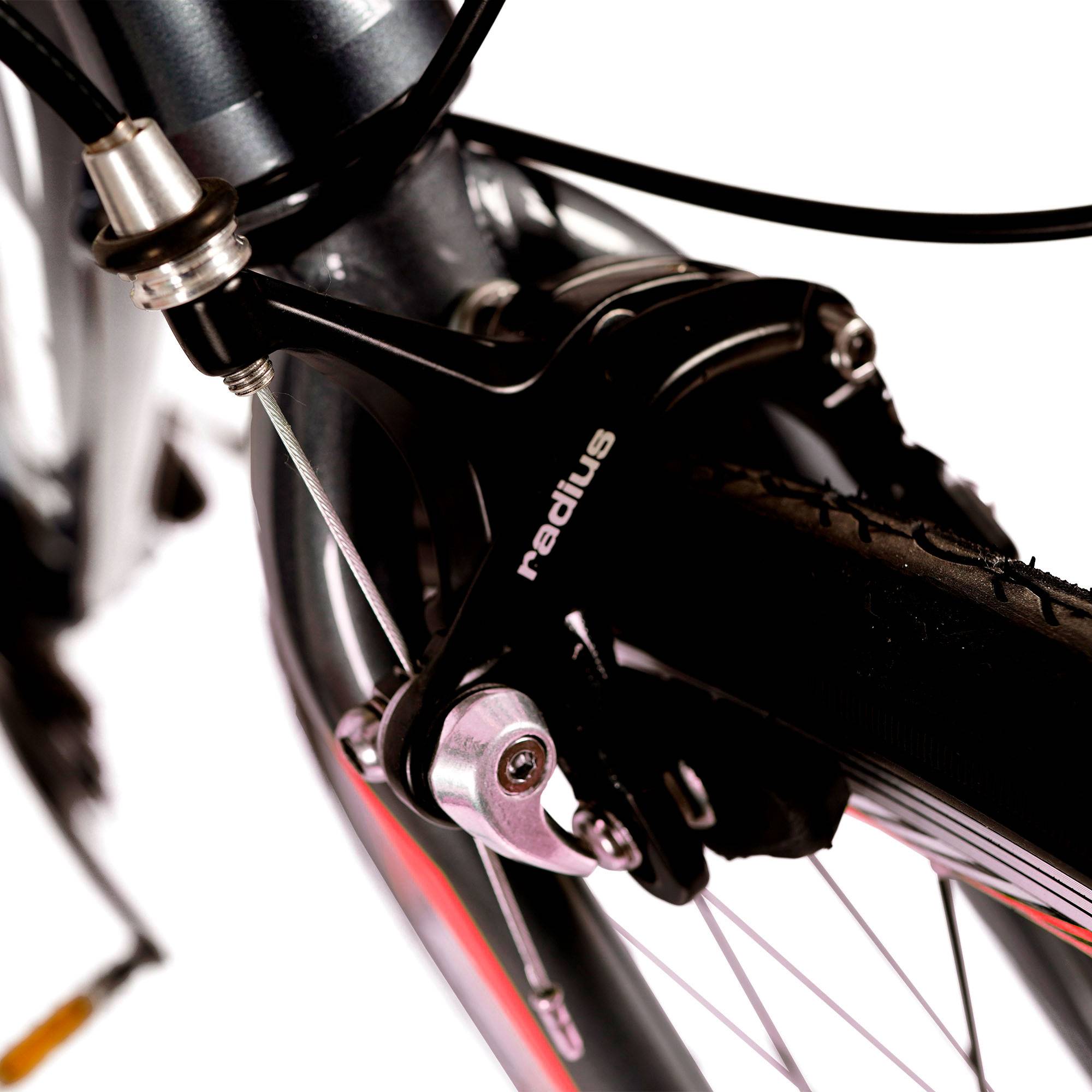

F/R brake:Taiwan RADIUS road bike professional adjustable break ，break shoes without  asbestos.

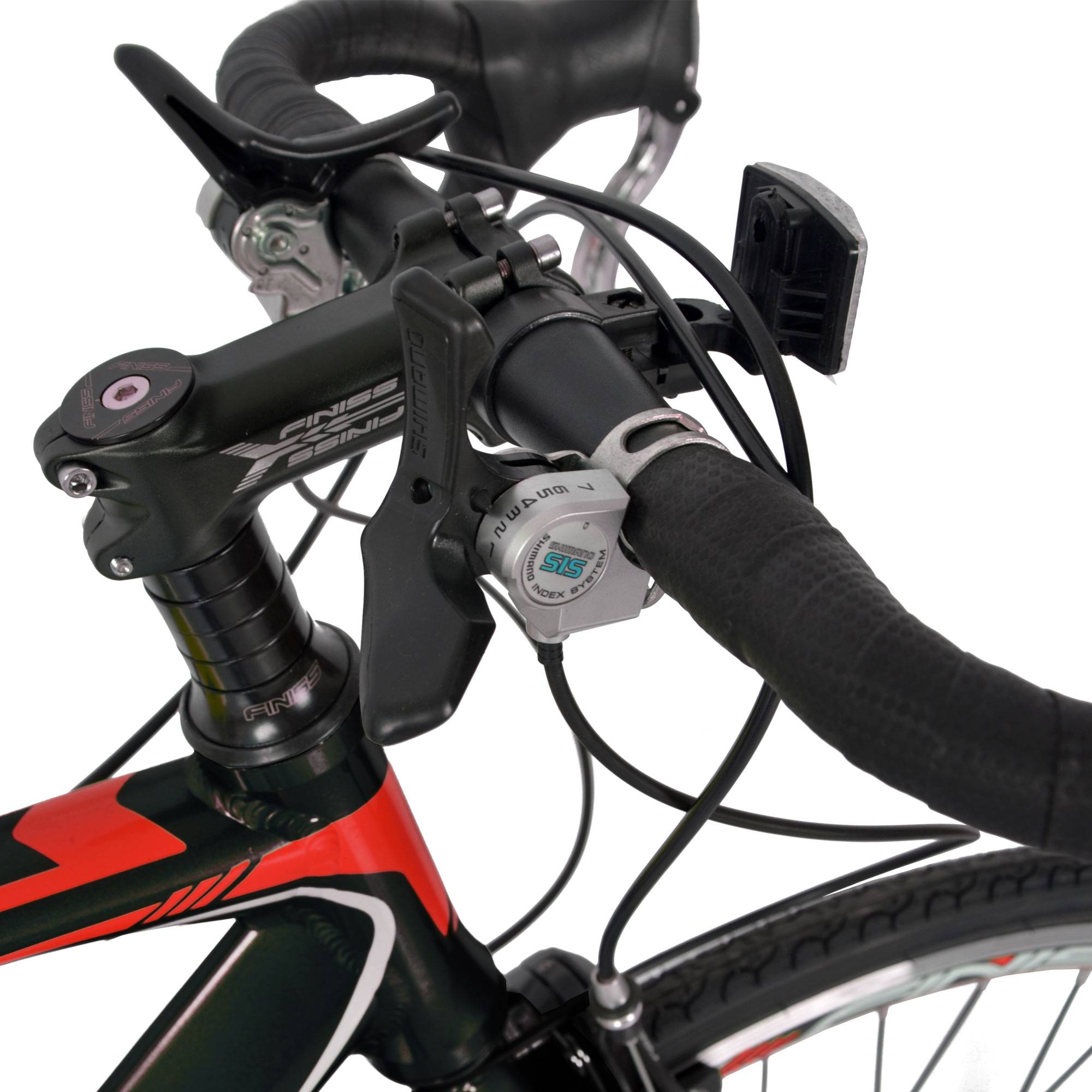

Shifter:SHIMANO，ASLAO5O，professional  for 21 speed  road bike

F/ derailleur:SHIMANO，RD-TZ500∮31.8  pull down

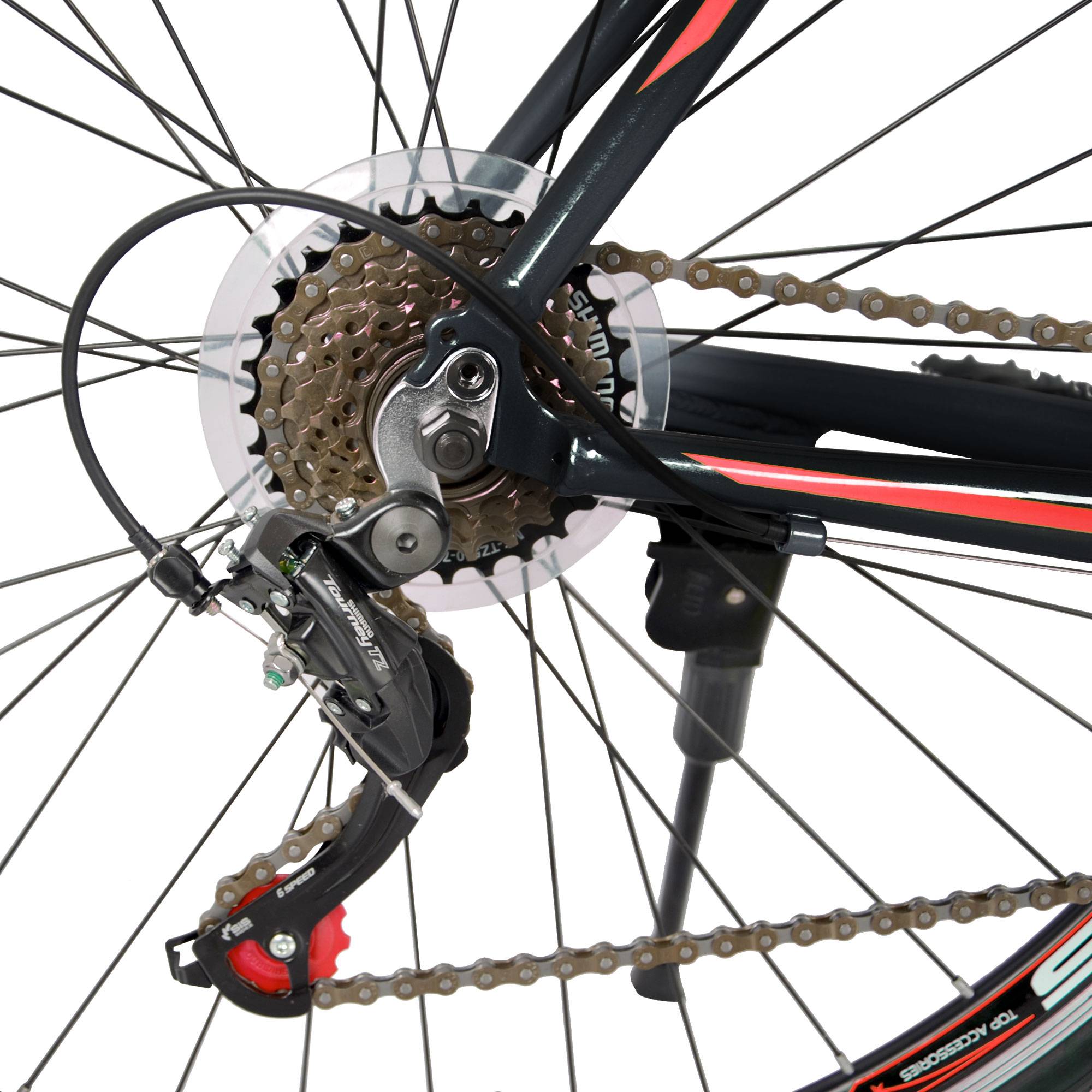

R/ derailleur:SHIMANO，RD-TZ500  long arm

Shifter cable pipe:SP cable pipe  ,Variable speed dedicated

Chain:Taiwan YBN   7 speed index   professional chain ， Advanced bridge chain

B.B. Axle:Taiwan NECO seal and bearing B.B.Axle  ，with hexagonal waterproof screw

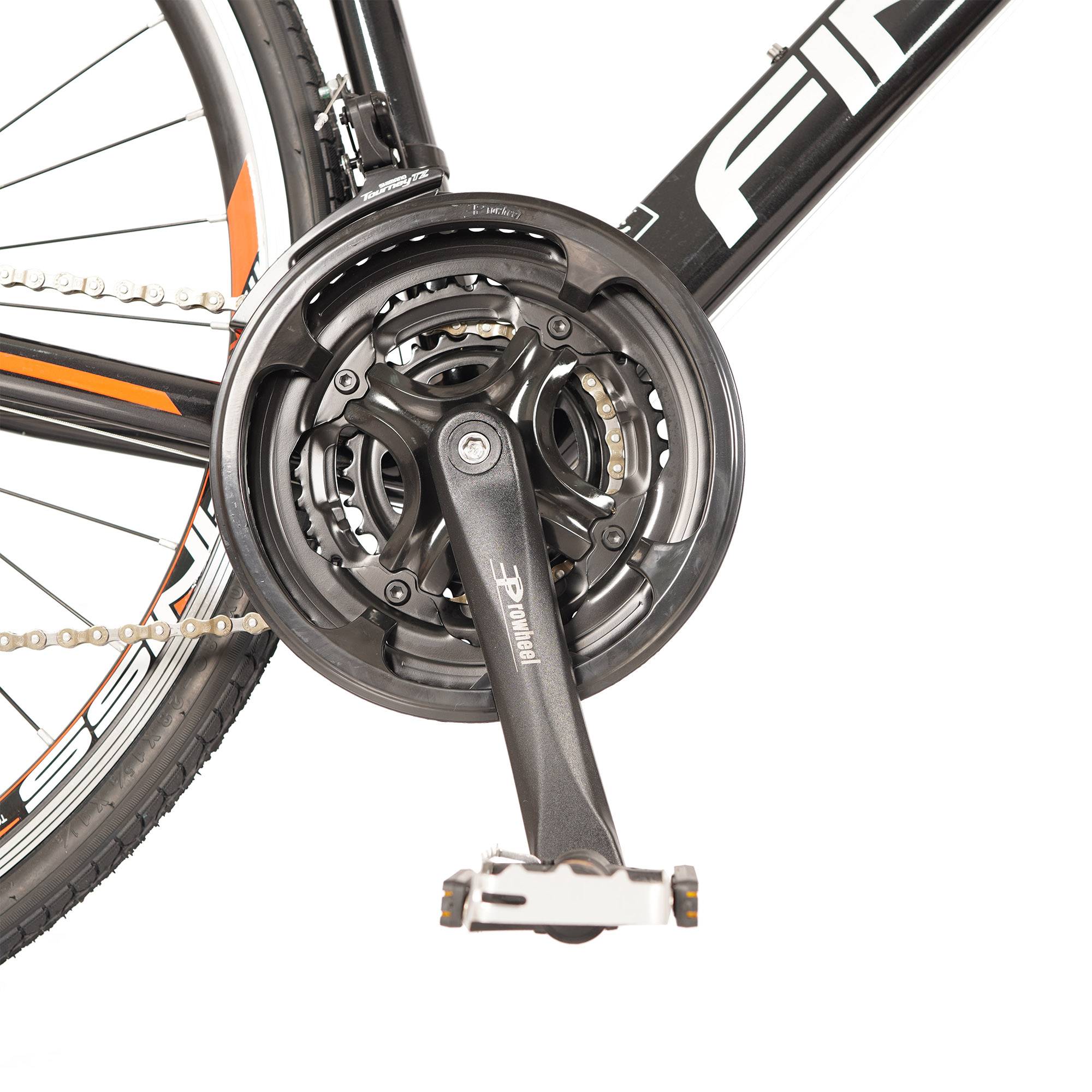

Chainwheel & crank:Taiwan  PROWEEL Aluminum alloy CWC ，28T(ED)*38T(ED)*48T(ED)*170L

Pedal:Taiwan NECO  Aluminum alloy pedal with ball， professional  forRoad bike ，Alxe : 9/16"

Tyre:700*28C，black tyre ,professional road bike  pattern.

Tube:KENDA，700*28CButyl rubber    F/V  48mm

Rim tape:High pressure  nylon  rim tape

Rim:700C  Double wall reinforced aluminum alloy  rim  high：30mm ，CNC with safety line , professional  for  road bike

F/R hub :SHUNFENG aluminum alloy  road bike hub with front QR

Freewheel:SHIMANO，MF-TZ500，7 speeds index

Tool:Multi - function non - hole wrench 1PCS+Hexagon socket wrench L type 4#+Hexagon socket wrench L with cross 5#*1SETS

Carton/plastic bag:85% assembly ,  A seven-layers  American card  carton

Max Load :Load 330LBS

Package Including:

1 x  road bike

Note:

1. Due to the light and screen difference, the item's color may be slightly different from the pictures.

2. Please allow 1-2 cm differences due to manual measurement.
